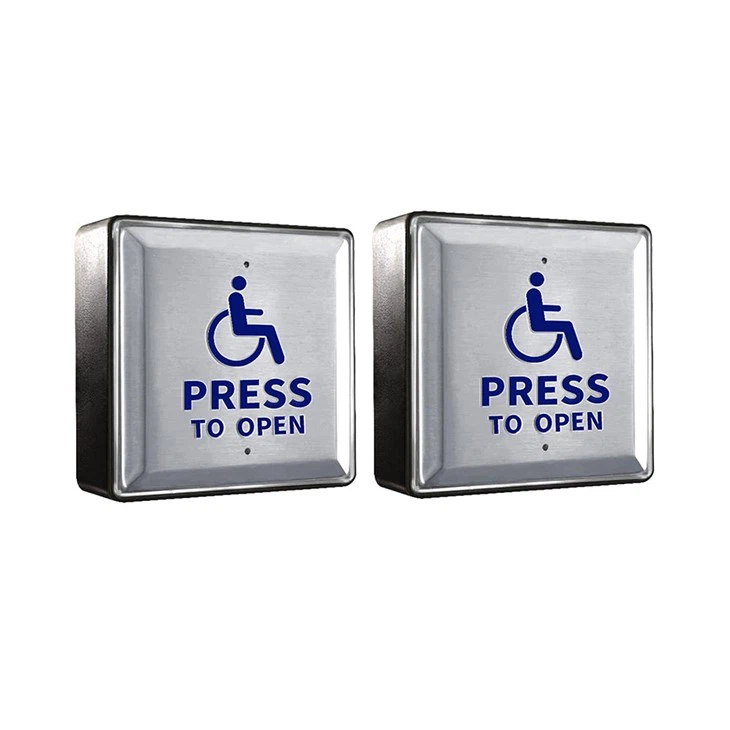

Handicap Press Button Smart Switches

CANBO M-510 Kev Tsis Txaus Siab Nias Khawm Ntse Hloov





Lub Handicap Press Button Smart Switches yog qhov zoo tshaj plaws lub laub ua kom khawm hauv lub lag luam tsis siv neeg lub qhov rooj. Nws yog ua los ntawm cov ntaub ntawv stainless hlau, kev lag luam style zoo li, tiv thaiv dents thiab puas.



ADA lub qhov rooj qhib qhov qhib khawm, feem ntau yog siv rau lub khw muag khoom tsis siv neeg lub qhov rooj, qhov rooj tsis siv neeg ntawm thaj chaw nyob, qhov rooj hluav taws ntawm cov tsev lag luam, thiab lwm yam.

Cov kev hloov pauv no muaj nyob hauv ntau tus qauv raws li qhov xav tau sib txawv suav nrog:
[Wireed & wireless tsim]: 2.4G wireless hloov, nrog lub receiver, kuj tuaj yeem hloov tau TUYA txais, kom ua tiav cov chaw taws teeb tswj hauv xov tooj APP
[Square & slim loj]: Nws yog txhua yam ua los ntawm cov khoom siv stainless hlau, square hom nrog 5.08 "/ 129mm hauv qab mount box, slim hom nrog 4.76"x2" / 121x51mm hauv qab mount box
[Xovxwm & nthwv dej hloov]: Tag nrho vaj huam sib luag laub khawm; tsis muaj qhov kov yoj rau qhib qhib qhov hloov pauv,
[Infrared & Capacitive Technology]: Qhov ntsuas qhov deb ntawm infrared technology yog 3-30cm, capacitive technology yog 0-6 cm feem ntau.



Cov khoom no tsis yog tsuas yog tsim rau lub qhov rooj nkag mus tswj qhov system, tab sis kuj yog rau kev thov kom tawm hauv daim ntawv thov nrog kev siv cov khoom siv hlau nplaum, hluav taws xob ntaus, lossis hluav taws xob tawm ntawm cov khoom siv kho vajtse.





① Wireless transmitter qhia lub teeb (Nias lub pob thaum siv lub wireless muaj nuj nqi, thiab lub teeb xiav xiav teeb)
② tsau ntsia hlau
③ Vaj huam sib luag nruab qhov ntsia hlau
④ Wired thiab wireless hloov pauv
⑤ Lub qhov (socket) txuas thaum siv cov khoom siv txuas
⑥ Nias khawm
⑦ Lub thawv roj teeb (Thov xyuam xim rau qhov zoo thiab tsis zoo electrodes thaum txhim kho lub roj teeb)

① Fais fab taw qhia: liab LED; Action indicator: xiav LED
② Hom hloov
③ Kho cov ntsia hlau
④ Kawm khawm
⑤ Hlau terminals





Rau no series ADA xovxwm & touchless actuator hloov, nta suav nrog:

1, touchless infrared sensor hloov, huv si thiab huv si
2, 2.4G wireless hloov, tuaj yeem phim M-TY TUYA txais, xov tooj ntawm tes chaw taws teeb tswj qhov rooj qhib
3, ob qhov tso zis teeb liab hom xaiv tau, inching hom thiab tuav hom, hloov mus rau ntau qhov kev xav tau ntawm qhov chaw
4, tus qauv tsim, qhov loj me, cov khoom siv sib txawv, ntau yam kev xaiv rau koj siv
5, muaj cov ntawv nyeem, lub teeb qhia, xibtes thiab lub rooj zaum lub log, yooj yim rau cov neeg siv
6, txhawb kev cai logo thiab cov ntawv cim



Cov txheej txheem ua haujlwm:

① Lub wireless muaj nuj nqi ntawm cov khoom no txais tus kheej-kawm code, thiab lub transmitter yuav tsum tau txuam nrog lub receiver ua ntej siv nws. Nws tuaj yeem kawm txog 20 transmitters.
②Txoj kev kawm: nias lub khawm kawm ntawm tus txais ib zaug, lub teeb qhia tau qhib thiab los ntawm lub teeb ntsuab tig mus rau lub teeb liab, uas nkag mus rau hauv lub xeev kev kawm. Meanwhile nias lub transmitter khawm, lub teeb liab thiab teeb ntsuab flashing alternately, txhais tau tias kev kawm tiav.
③Delete txoj kev: Nias thiab tuav lub khawm kev kawm ntawm lub receiver rau 5 vib nas this, lub teeb liab thiab ntsuab flashes sai sai thiab alternately, tag nrho cov lis dej num yog deleted ntse.
④ Tua lub hwj chim ua ntej thaum hloov ntawm M hom thiab L hom. Txwv tsis pub, tus txais yuav nyob twj ywm hauv nws lub xeev dhau los.



Lub cim tsis zoo no lub qhov rooj nkag mus laub khawm yog zoo meej ua haujlwm nrog hom tsis siv neeg lub qhov rooj qhib thiab tsis siv neeg qhov rooj nkag mus tswj qhov system. Kev ua tiav thiab kev ua tiav ntawm tag nrho cov haujlwm yuav tsum muaj tsawg kawg yog 1 tus txais thiab 1 hloov nrog rau lub qhov rooj tsis siv neeg. Thiab lub receiver thiab qhov hloov pauv tau ntim rau hauv ib lub thawv sab hauv. Yog li peb txhawb nqa muag ib tus zuj zus lossis hauv cov teeb tsa, 1pc receiver ntxiv rau 1pc hloov rau ib lub teeb, lossis 1pc receiver ntxiv rau 2pcs keyboards rau ib txheej, nyob ntawm seb koj xav tau.



Wireless Receiver

Fais fab mov: AC/DC 12-30V
Tam sim no: 30mA (DC 12V fais fab mov)
Ua haujlwm tam sim no: 74mA (DC 12V fais fab mov)
Relay muaj peev xwm: 3A, 30V DC
Qhov Loj: 110mm (L) × 30mm (W) × 15mm (H)



Wireless Transmitter

Fais fab mov: 3V (2pcs 1.5V LR6 roj teeb)
Kev xa tawm tam sim no: 12.4mA
Roj teeb lub neej: ntau tshaj 20000 zaug
static tam sim no: Tsawg dua los yog sib npaug rau 10μA
Launch nrug: ntau tshaj 30 meters
Ua haujlwm kub: -42 degree ∽45 degree
Ua haujlwm av noo: 10 ~ 90% RH
Khoom loj: 129mm (L) × 129 mm (W) × 46 mm (H)





1, Kev ruaj ntseg zoo
Shenzhen Winfor Canbo Technology Co., Ltd tau tsim muaj nyob rau xyoo 2006, koom nrog kev lag luam tsis siv neeg lub qhov rooj nkag mus tswj kev lag luam tau ntau xyoo, ua tiav cov txheej txheem tsim khoom thiab kev sim, nrog kev tswj xyuas zoo, cov chaw tsim khoom ncaj qha, thiab tom qab muag muag.

2, Tus nqi zoo dua
Peb yog cov chaw tsim khoom, koom ua ke los ntawm R & D, ntau lawm thiab muag khoom. Factory mov nrog tus nqi zoo dua, kuj peb siv cov nqi sib tw thiab raws li kev txiav txim kom muaj nuj nqis, nws yuav ncaj ncees thiab sawv cev rau lub siab dawb paug ntawm kev koom tes ntev ntawm peb.


3, One-stop khoom
Peb pab neeg nrog lub koom haum meej, lub hom phiaj ruaj khov, kom deb li deb peb muaj cov khoom tiav ntau dua nyob ib ncig ntawm lub qhov rooj tsis siv neeg los txhawb cov kev xav tau sib txawv ntawm cov neeg siv khoom, peb kuj tseem txhim kho cov khoom tshiab, thiab txhawb kev hloov kho.

Yog tias koj muaj lus nug txog peb cov khoom, tsis txhob yig tiv tauj peb. Peb yuav xa peb cov catalog rau koj siv.



A1: Thaum twg kuv yuav kawm tus nqi?

A: Yog tias koj xav tau ib nqe lus, thov hu rau kuv thiab qhia rau peb paub koj qhov kev xav tau lossis cov qauv khoom. Yog xav paub ntxiv txog peb cov khoom portfolio, koj kuj tuaj yeem tiv tauj peb.



Q2: Peb tuaj yeem tuaj xyuas thiab sim koj cov khoom nyob qhov twg?

A: 1, online tiv tauj peb thiab tso qhov kev txiav txim ntawm peb cov khoom; 2, peb yuav nquag tshaj tawm qee cov duab khoom thiab cov yeeb yaj kiab nyob hauv peb cov kev tshaj tawm, xws li LinkedIn & YouTube, thov nyob twj ywm thiab tiv tauj peb dawb; 3, peb yuav tuaj koom qee qhov kev lag luam ncaj ncees, feem ntau ntawm lawv nyob hauv Suav teb tam sim no, koj tuaj yeem pom lawv ntawm qhov chaw; 4, peb lub tuam txhab thiab lub Hoobkas nyob hauv nroog Shenzhen, CN, txais tos tuaj xyuas peb lub Hoobkas.



Q3: Koj puas tuaj yeem pab muab cov khoom lag luam ntxiv uas peb yuav muaj uas tsis nyob hauv koj nplooj ntawv?

A: Thaum koj tau txais kev sib cuag nrog peb, e-catalog yuav xa tuaj rau koj tam sim ntawd. Tsis tas li ntawd, peb muaj cov kws tshaj lij engineering cov neeg ua haujlwm nrog kev paub dav los txhawb cov khoom tshwj xeeb no. Thov xa peb cov lus nug lossis kos duab koj muaj.

Cim npe nrov: handicap nias khawm ntse keyboards, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, customized, lag luam wholesale, nqe, hais, Tshuag, dawb qauv
