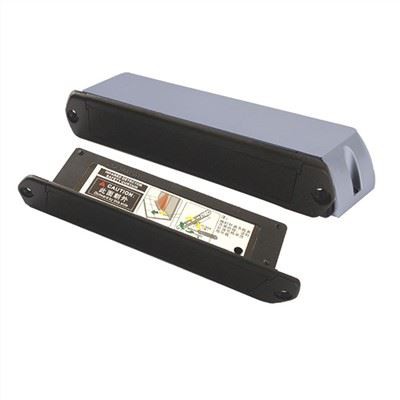

Infrared Sab saum toj Scan Sensor Rau Tsis Siv Neeg Viav Qhov Rooj

Infrared Sab saum toj Scan Sensor Rau Tsis Siv Neeg Viav Qhov Rooj

Qhuav Taw Qhia

Muaj peev xwm txheeb xyuas qhov txav los yog ruaj khov tib neeg lub cev thiab cov khoom, zam txhua yam kev hloov pauv tsis siv neeg lub qhov rooj lossis lub qhov rooj viav vias los ntawm kev sib tsoo nrog lub cev lossis cov khoom, kom ntseeg tau tias muaj kev nyab xeeb ntawm tib neeg thiab khoom siv, dav siv nyob rau hauv tsis siv neeg tig qhov rooj muaj kev nyab xeeb muaj xwm txheej.

Ntsiab lus

1, Nws tuaj yeem ntes cov neeg tsiv lossis sawv ntsug lossis cov khoom, kom muaj kev nyab xeeb thaum tib neeg lossis cov khoom siv nkag los ntawm lub qhov rooj sib hloov lossis lub qhov rooj viav vias tsis siv neeg.

2, Ingenious qauv, yooj yim tab sis niaj hnub tsos. Thiab yooj yim heev rau nruab.

3, Qhov ntsuas qhov siab thiab qhov ntsuas qhov ntsuas tau raug kho los ntawm kev kho lub log thiab xauv cov ntsia hlau, nrawm thiab raug.

4, Lub kaw lus muaj zog ruaj khov, nrog rau keeb kwm yav dhau thiab lub suab nrov lim, tsis cuam tshuam los ntawm ib puag ncig (xws li tshav ntuj, daus, nag, thiab lwm yam).

5, Lub kaum sab xis ntawm kev txheeb xyuas tuaj yeem raug kho kom raug los ntawm mounting bracket.

Tsis muaj

Txheej txheem ntau lawm

① Aluminium vaj tse

②Sensor * 2

③ Xaus npog * 2

④ Pem hauv ntej npog (filter iav)

⑤ Mounting brackets * 2

⑥Cross-recessed screws * 2

⑦ Txuas lub davhlau ya nyob twg

⑧ Qhov taw qhia teeb

⑨ Background set switch

⑩Scanned cheeb tsam tswj lub log

⑪ Hloov chaw nyob

⑫ Tau txais lub tsev

⑬ Hlau interface * 2

Kev teeb tsa

1, Option1: Tshem ob lub hau ntswj los ntawm kev sib dhos, tom qab ntawd thawb lawv mus rau lwm sab.

Option2: Tshem tawm cov ntsia hlau. Tom qab ntawd nqa lub bracket tuav thiab sensor tawm ntawm aluminium case kom zoo.

2, Txhim kho cov ntaub ntawv aluminium ntawm lub qhov rooj nplooj

3, Cov ntsia hlau yuav tsum tau muab tshem tawm ua ntej txuas lub mounting brackets rau rooj plaub loj. Muab lub sensor rau hauv rooj plaub thiab nruj 2 mounting brackets rau sensor.

CEEB TOOM: Nruab lub cable. Xyuas kom tseeb tias cov ntsia hlau tau qhib los ntawm kev sib dhos ua ntej muab lub sensor rau hauv rooj plaub.

4, Tom qab hom: Ib txwm lossis tsaus

5, Pib lub sensor tom qab tag nrho cov installation. Siv ib daim ntawv (A4 lossis 8.5 * 11 inch) lossis koj txhais tes los kuaj qhov chaw kuaj pom.

CEEB TOOM: LED teeb yuav los ntawm xiav tig mus rau liab.

6, Siv lub log hloov kho qhov chaw scan. Teem lub scan ntau li 25 cm saum toj no hauv av.

7, Xaub lub sensor los kho qhov chaw kuaj pom (Txhim kho lub nplhaib yuav tsum qhib).

8, Siv lub ratchet pawl hauv mounting bracket los teeb lub kaum sab xis ntawm Inclination. (Ceeb Toom: Kho ob sab lub kaum sab xis kom zoo ib yam kom tsis txhob muaj kev xav.)

9, Tom qab ua tiav tag nrho cov kev teeb tsa, xauv lub hau ntswj hauv mounting bracket kom ruaj khov rau lub sensor.

10, Kaw lub hau pem hauv ntej thiab siv cov ntsia hlau kom ceev. Tom qab ua tiav lub installation ntawm sensor, muab lub hau rau pem hauv ntej mus rau aluminium case.

Tag nrho cov kauj ruam yog siv rau kev hloov ntawm ib leeg sensor, ob npaug los yog ntau dua sensors kuj siv tib txoj kev.

Kev daws teeb meem

Q&A

Q1, Koj puas tuaj yeem muab kuv qhia luv luv txog koj lub tuam txhab?

A1: Shenzhen Winfor Canbo Co., Ltd, peb yog cov chaw tsim khoom sib tw ntawm AUTOMATIC DOOR ACCESS CONTROL ACCESSORIES hauv Suav teb, suav nrog cov lus tsa suab thiab muaj cov sensors, touchless hloov, tuaj koom tswj cov khoom siv, ntse xauv, thiab lwm yam. Peb muaj 15 xyoos kev paub dhau los thiab 6 cov kab ntau lawm, zoo zoo, kev tshawb fawb nplua nuj & tsim thiab tsim khoom, thiab tag nrho cov khoom CANBO nrog CE daim ntawv pov thawj. Txhawb LOGO customization thiab muaj nuj nqi customization.

Q2, Puas muaj Tshuag?

A2: Cov khoom me me, cov khoom loj yuav tsum tau xaj cov ntaub ntawv, 1000-3000pcs txog 10-15 hnub ntau lawm.

Q3. Yuav xa li cas?

A3: Peb txhawb nqa kev xa tawm, los ntawm huab cua, los ntawm hiav txwv, thiab lwm yam. Los yog yog tias koj muaj koj tus kheej cov nyiaj them poob haujlwm, lossis koj tus kheej xa mus, thov qhia rau peb paub.
