Lub koob yees duab Recognition Access Motion Sensor

CAWB LV802Lub koob yees duab Recognition Access Motion Sensor



Nyob rau hauv lub neej niaj hnub no, tsis siv neeg lub qhov rooj yog ib qho tseem ceeb ntawm cov niaj hnub architecture thiab ib qho tseem ceeb ntawm peb lub neej niaj hnub. Rau ntau qhov chaw pej xeem thiab kev lag luam, lawv muab kev siv hluav taws xob zoo, yooj yim, thiab kev nyab xeeb.

Hauv qhov kev nkag mus no, qhov qhib thiab kaw ntawm lub qhov rooj tsis siv neeg tsis tuaj yeem raug cais tawm ntawm lub luag haujlwm ntawm lub sensor. Lub zog ua haujlwm feem ntau yog nyob ntawm microwave thiab infrared thev naus laus zis, thiab kev nyab xeeb muaj nuj nqi feem ntau yog nyob ntawm infrared thiab laser technology. Tsis tas li ntawd, peb muaj cov koob yees duab sensors kom paub txog tib neeg lub cev rau kev ua kom lub qhov rooj tsis siv neeg thiab muaj kev nyab xeeb.



Lub koob yees duab sensor series, Lub Koob Yees Duab Pom Kev Nkag Mus Nkag Sensor:

1, Qhov siab tshaj plaws installation qhov siab yog 5 meters, ultra-siab qhov rooj kuj siv tau.
2, Tsim nyog rau zawv zawg qhov rooj, qhov rooj viav vias, kev paub ntau yam thiab kev tiv thaiv.
3, Embedded type (803) thiab exposed type (802/805) muaj.
4, Kev them nyiaj yug ruaj mounted ntawm lub qhov rooj lub taub hau, thiab nruab rau ntawm lub qhov rooj txav ntawm nplooj.
5, 802/803 nrog ib lub teeb relay, 805 nrog ob lub teeb relay, muab cov lus tsa suab thiab kev nyab xeeb.
5, Lub koob yees duab tsuas yog paub txog tib neeg lub cev, cov ntaub ntawv yuav tsis txuas thiab khaws cia los ntawm lub xov tooj ntawm tes. Tsis txhob txhawj txog cov teeb meem ntiag tug.
6, Nrog ib qho axis dav dawb hau qhov muag tsim, lub kaum sab xis ntawm lub koob yees duab ± 20 degree tuaj yeem kho tau.

Cov ncauj lus kom ntxaws installation cov kauj ruam raws li hauv qab no:

1, Muab cov ntaub ntawv hauv qab ntawm lub sensor nyob rau hauv txoj hauj lwm tsim nyog ntawm lub qhov rooj nplooj, thiab kos lub qhov chaw uas lub qhov yuav tsum tau drilled.
2, Laum lub mounting qhov thiab mounted threading qhov raws li lub cim ntawm lub qhov rooj.
3, Txhim kho lub sensor lub hauv qab rooj plaub los ntawm screws, kaw cov hlau shrapnel ntawm ob sab ntawm lub sensor, thiab tso lub sensor rau hauv qab rooj.
4, Nyob rau hauv txoj kab nrog cov kab kos los txuas nrog lub qhov rooj tsis siv neeg, thiab kaw lub hau saum toj kawg nkaus.
5, Xa mus rau cov lus qhia ua haujlwm kom debugging lub sensor.
6, Debugging tiav, kaw lub hau npog semi-pob tshab.

Kev kuaj pom muaj nuj nqi: tib neeg daim duab qhib, kev nyab xeeb
Lub koob yees duab pixel: HD 1080P
Teb ceev: 100ms
Saib lub kaum sab xis: ± 20 degree
LED qhov taw qhia: standby hauv BLUE, qhib hauv RED, kev nyab xeeb hauv RED teeb nyem
Fais fab mov: AC/DC 12-30V
Tam sim no: Standby 95mA, ua haujlwm 130mA
Ua haujlwm kub: -20 degree ~ 60 degree
Ua haujlwm av noo: 10% ~ 90% RH
Installation qhov siab (max): 5 meters
Qhov Loj: 157 (L) x 53 (W) x 34 (H) mm

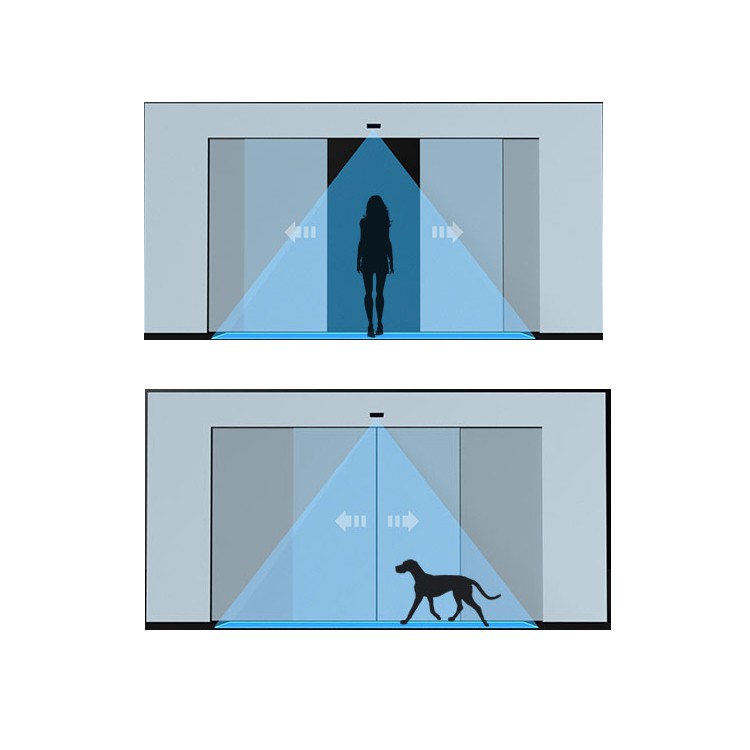

1, Lub scanning ntau ntawm no series ntawm sensors yog unidirectional.
2, Thaum lub installation ntawm qhov chaw, thov muab lub "Sab nraum ntawm no sab" kos npe rau ntawm tus tib neeg daim duab induction kev taw qhia.
3, Vim muaj kev txwv ntawm AI Neural Network sib sib zog nqus kev kawm, nyob rau hauv qee qhov tshwj xeeb scenes, lub kaw lus yuav tso tawm qee qhov kev cia siab rau qee yam khoom tsis yog tib neeg (zoo li tib neeg daim duab), thiab nws muaj peev xwm tso tawm cov teeb liab. Thov sim daws qhov teeb meem los ntawm cov hauv qab no:
a) Tig txoj hauj lwm ntawm cov khoom, yuav tsis raug lees paub tias yog tib neeg daim duab.
b) Txo qhov rhiab heev.
c) Kho lub kaum sab xis ntawm lub koob yees duab lossis kho qhov chaw xaiv nrhiav kom pom, kom tsis txhob muaj cov khoom tshwm hauv qhov screen.

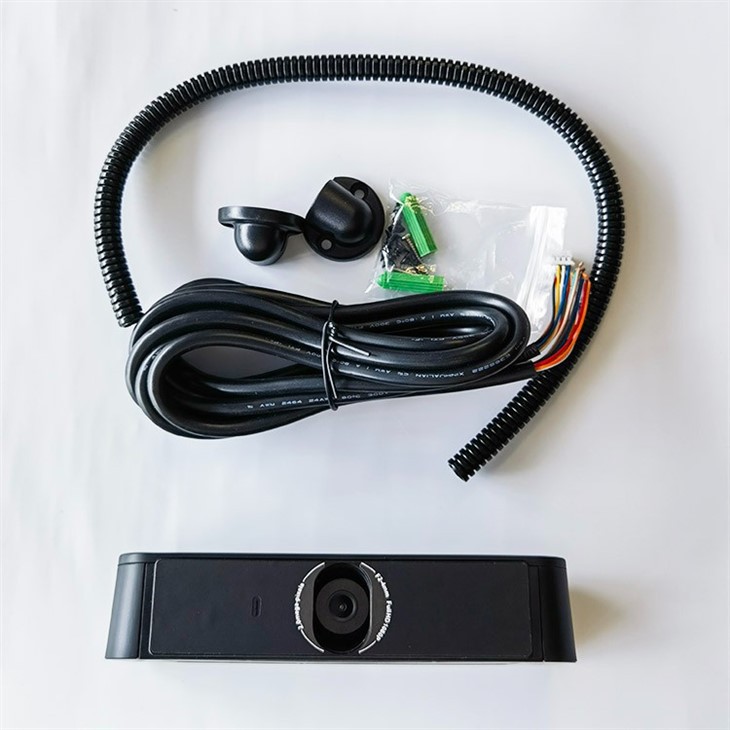

TSIS MUAJ.	Yam khoom	QTY	Nco tseg
1	Sensor	1	Sensor thiab 3 npog
2	5-PIN cable	1	2500 hli
3	Ntsia lub hnab	1
4	Cov lus qhia installation



Lub sensor yog qhwv hauv sealing zoo li qub shielding hnab, thiab nrog rau tag nrho lwm qhov chaw ua ke ntim nrog kev cai sab hauv lub thawv. Txhua txheej ntawm sensor nyob rau hauv ib lub thawv. Thiab ua ntej shipping, lub thawv sab hauv yuav tau ntim rau hauv cov thawv sab nrauv, yooj yim rau kev xa khoom. Raws li pom hauv daim duab hauv qab no.

Q1. Koj puas tuaj yeem xa catalog thiab cov qauv rau kuv?
A: Yog, tsis muaj teeb meem, peb muaj tag nrho cov khoom catalogue, thov hu rau peb thiab peb yuav xa cov catalog rau koj sai sai. Los yog muaj kev xav tau thov qhia rau peb paub, peb tuaj yeem pom zoo tus qauv tsim nyog rau koj.



Q2. Kuv puas tuaj yeem sib xyaw ua qauv & xim rau cov qauv lossis kev txiav txim?
A: Yog, paub meej, kev txiav txim sib xyaw lossis xim tau txais. Koj tuaj yeem tso peb cov lus hais txog yam qauv & xim koj xav tau. Tab sis yog tias koj xav coj cov qauv sib txawv, thov ua siab zoo xa email rau peb.



Q3. Yuav ua li cas lav tom qab muag?
A: Peb muab 12 lub hlis khoom warranty. Yog tias cov khoom tau pom muaj qhov tsis zoo thaum lub sijhawm lav, koj tuaj yeem tiv tauj peb tam sim ntawd, peb xav pab koj daws qhov teeb meem thawj zaug, cov khoom yuav npaj kho lossis ib qho tshiab rau koj. Los yog yog tias muaj lus nug thaum lub sij hawm installation lossis commissioning, thov hu rau peb, peb cov engineers yuav pab koj.
