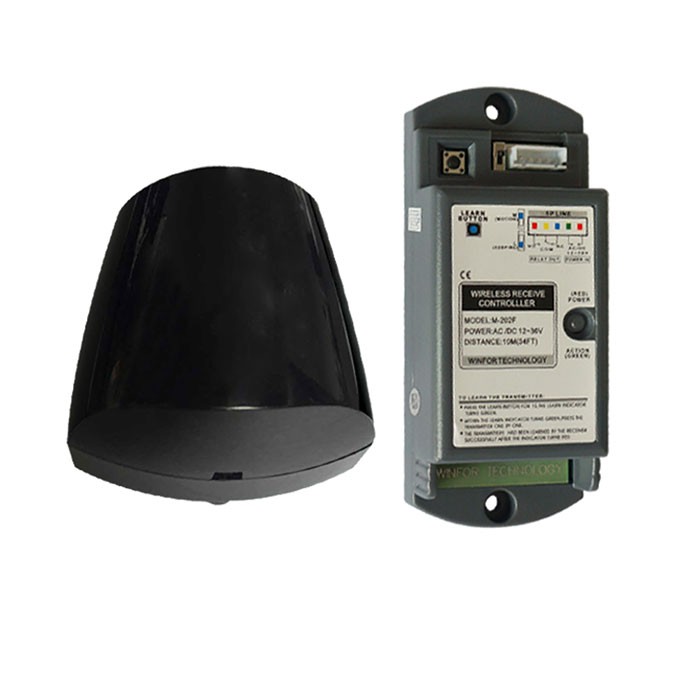

Wireless Infrared Pedestrian Sensor
Qhov no wireless infrared neeg taug kev sensor, wireless style, me me thiab integrated tsim, yuav siv tau nyob rau hauv ntau yam tsis siv neeg lub qhov rooj raws li cov lus tsa suab muaj nuj nqi, siab rhiab heev, ceev thiab meej teb, microwave nkag mus nrog muaj zog tiv thaiv - cuam tshuam, dav siv nyob rau hauv lub lag luam qhov rooj , muaj qhov rooj thiab lwm yam xav tau heev ntawm kev tswj tsis siv neeg.
- Kev xa khoom sai
- Quality Assurance
- 24/7 Kev Pabcuam Cov Neeg Siv Khoom
Khoom Taw qhia
Infrared txav sensor
Qhov no wireless infrared neeg taug kev sensor, wireless style, me me thiab integrated tsim, yuav siv tau nyob rau hauv ntau yam tsis siv neeg lub qhov rooj raws li cov lus tsa suab muaj nuj nqi, siab rhiab heev, ceev thiab meej teb, microwave nkag mus nrog muaj zog tiv thaiv - cuam tshuam, dav siv nyob rau hauv lub lag luam qhov rooj , muaj qhov rooj thiab lwm yam xav tau heev ntawm kev tswj tsis siv neeg.

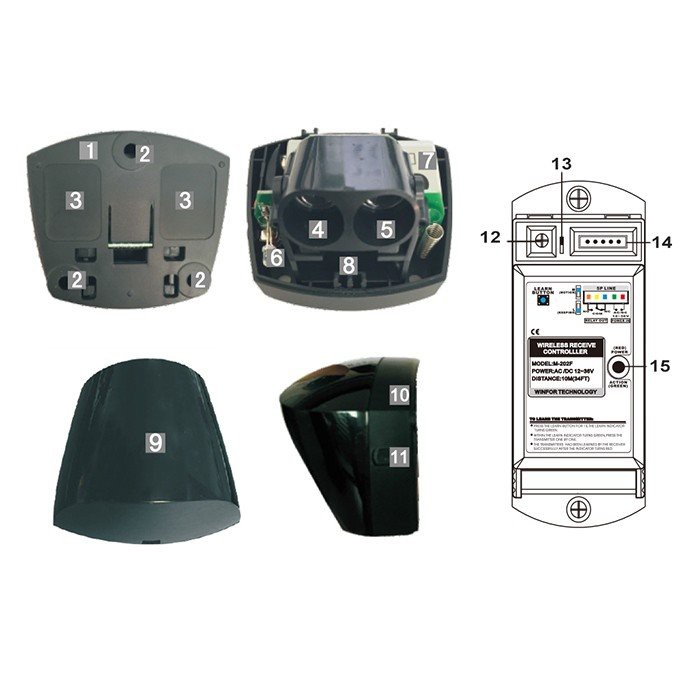

Zuag qhia tag nrho
1, Hauv qab npog
2, Mounting screws qhov x 3
3, Cov kab hluav taws xob x 2
4, Launch rau hauv
5, Txais lub thawv
6, Qhov taw qhia teeb
7, 6F22 9V roj teeb
8, Coding hloov
9, Lim sab saum toj npog
10, Hauv qab cover
11, Lub zog hloov
12, Kawm khawm
13, L / M tso zis
14, Lub qhov (socket).
15, Qhov taw qhia xwm txheej: Fais fab hauv lub teeb liab, siv tau hauv GREEN teeb
Khoom nta
1, Txais kev xa xov wireless thiab txais kev ua haujlwm, siv nrog kev sib txuas wireless receivers, tsis muaj thaiv, hloov tau yooj yim rau nruab.
2, Kev sib xyaw ua ke sab saum toj npog tsim, saib zoo, plua plav- pov thawj thiab yooj yim rau nruab.
3, tuaj yeem siv tau hauv khw muag khoom, khw muag khoom thiab ntau tus neeg taug kev- los ntawm lub sijhawm me me tsis siv neeg tswj lub qhov rooj, lossis siv rau hauv qhov chaw me me rau kev kuaj pom kev nyab xeeb, ob qho tib si induction activation thiab kev nyab xeeb muaj nuj nqi.
4, Ib txoj kev xa tawm thiab ib txoj kev tau txais, ntse tus kheej - hloov pauv infrared sensor.
5, Lub inductive ntau thiab lub kaum sab xis tuaj yeem kho tau.
6, Tsis siv neeg thiab tiag- lub sij hawm raug them nyiaj rau lub sij hawm drift ntawm keeb kwm yav dhau, tus kheej - kho vim qhov kev hloov ntawm ntau yam sab nraud (xws li: kev co, deformation, gradual hloov, lub teeb thiab tsaus, thiab hnub ci, thiab lwm yam) kom ntseeg tau lub sijhawm ntev - thiab txhim khu kev qha ntawm lub tshuab ntes.
Technical Parameters
SENSOR
Dynamic tam sim no: | 13mA ua |
Scanning cheeb tsam: | 100 x 80 mm |
Wireless transmitting zaus: | 315 MHz |
Standby tam sim no: | Less than or equal to 80μA |
Txoj kev induction: | Infrared scanning |
Roj teeb qauv: | 6F22 9V |
Wireless kis nrug deb: | Txog li 15 meters |
Installation qhov siab: | Tsawg dua los yog sib npaug li 2600mm |
Sab nraud dimension: | 63 (L) x 57 (W) x 52 (H) mm |
CEEB TOOM
Fais fab mov: | 12-36V AC / DC |
Dynamic tam sim no: | 80mA (DC 12V zog) |
Hu rau lub sijhawm tuav: | 2 vib nas this |
Static tam sim no: | 11mA (12V fais fab tuag) |
Main contact peev: | 20A DC 14V |
Sab nraud dimension: | 123 (L) x 50 (W) x 32 (H) mm |
