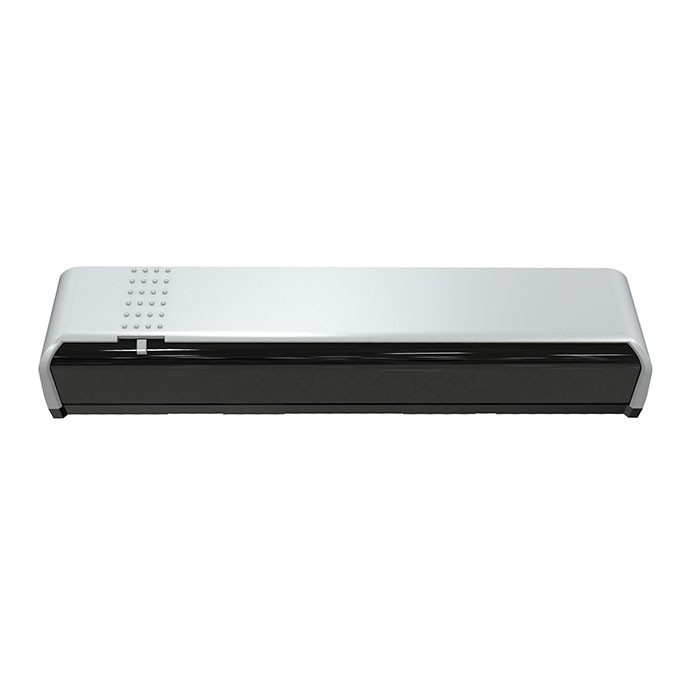

CANBO Activation Safety Sliding Door Sensor
Lub microwave suab thiab infrared nyob ua ke sensor 506E yog ib tug sensor uas combines radar technology rau lub activation ntawm lub qhov rooj nrog infrared technology rau cov neeg siv kev tiv thaiv. BS EN 16005 tau ua raws li qhov ntsuas no.
- Kev xa khoom sai
- Quality Assurance
- 24/7 Kev Pabcuam Cov Neeg Siv Khoom
Khoom Taw qhia
Microwave Motion& Infrared Presence Sensor
Lub microwave suab thiab infrared nyob ua ke sensor 506E yog ib tug sensor uas combines radar technology rau lub activation ntawm lub qhov rooj nrog infrared technology rau cov neeg siv kev tiv thaiv. BS EN 16005 tau ua raws li qhov ntsuas no.
Khoom feature
* Kev txav chaw thiab kev nyab xeeb 2 hauv 1 rau qhov rooj zawv zawg .Qhov kev ua kom muaj nuj nqi yog ua los ntawm microwave technology, kev kuaj pom pom yog ua los ntawm kev siv lub zog infrared.
* Muaj nuj nqi ntawm keeb kwm yav dhau los kawm tus kheej. Yuav kawm keeb kwm yav dhau los tau thaum lub hwj chim qhib. Haum rau txhua lub sijhawm.Ua kom kho tus kheej ib txwm raug cuam tshuam los ntawm av qeeg, distortion, txav, tsaus ntuj thiab tshav ntuj. Xyuas kom lub sensor tuaj yeem ua haujlwm ruaj khov.
* Lub tshuab microwave tau txais 24.125 GHz microwave sensor module imported los ntawm lub teb chaws Yelemees, uas tsis cuam tshuam los ntawm qhov kub thiab txias, av noo thiab lwm yam ib puag ncig, thiab nws cov kev ua haujlwm tau zoo heev.
Khoom specification
Lub zog nkag | AC / DC 12 30V (-/+10%) |
Hlau ntev | 2.5m |
Cov zis tawm | Relay, ib txoj kev ua kom, ib txoj kev muaj, TSIS MUAJ / NC xaiv tau |
Max installation qhov siab | 3500 hli |
Static tam sim no | 43mA ua |
Kev ua tam sim no | 115 mA |
Dimension | 267.2 (L) × 61.1 (W) × 46 (H) hli |
Npog cov khoom siv | ABS yas |
Infrared muaj nyob
Ray hom | Infrared modulated hluav taws xob |
Ray Source | 940 hli infrared |
Lub teeb beam | 2 txoj kev kis, 24 lub teeb pom kev |
Lub sijhawm kawm tus kheej | Dynamic ruaj khov 2s rau kev kawm tus kheej |
LED qhov taw qhia | Standby hom: Ntsuab LED; 2nd kab infrared ray ntes hom teeb liab ib txwm nyob; 1st kab infrared ray ntes hom liab teeb flashes. |
Ua haujlwm kub | -40 ℃ to 60 ℃ |

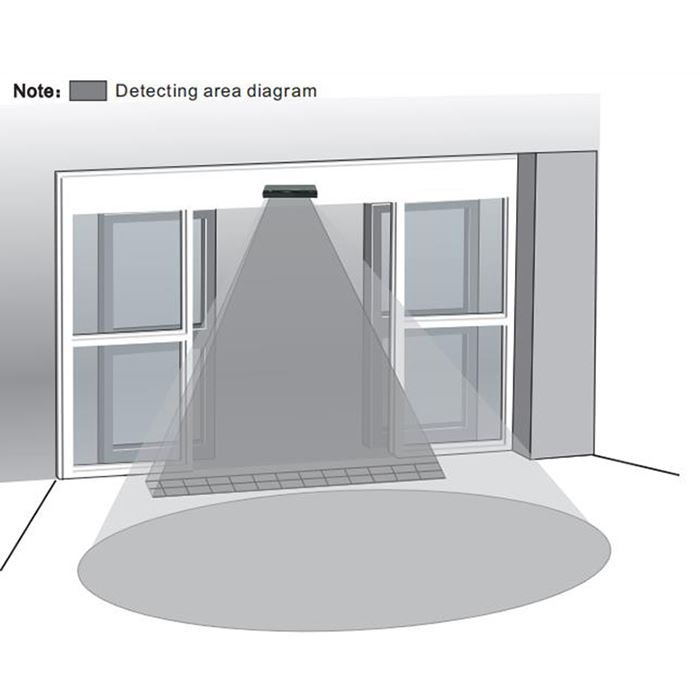

Kev kuaj xyuas cheeb tsam | 2500 (W) × 600 (D) mm |
Tso zis tuav lub sij hawm | 0.5s |
Teb | ≤100ms |
Optical nto | PMMA |
Lub sijhawm hloov tshiab tom qab | 15S.1min, 30min,∞ yeem |
Microwave induction
Technology | Microwave thiab microwave processors |
Ntau zaus | 24.125 GHz |
Kev xa hluav taws xob | ＜ 20dBm EIRP |
Transmitting zog ceev | 5 mW/cm2 |
Kev kuaj xyuas hom | Tsab ntawv tsa suab |
Kev ua haujlwm zaub | Microwave induction Blue LED teeb rau |
Kev kuaj pom cheeb tsam (Nruab qhov siab=2.2meter) | 4m(W)×2m(D) |
Lub sijhawm khaws cia | 2s |
Ua haujlwm kub | -20 ℃ to +55 ℃ |
Daim ntawv thov
Qhov no EN16005 Microwave Motion& Infrared Presence Sensor, xim dub thiab nyiaj grey tuaj yeem muaj, thiab kho ntawm lub taub hau ntawm lub qhov rooj zawv zawg qhov rooj lossis kaw los ntawm kev teeb tsa saum npoo raws li kev ua kom muaj nuj nqi lossis muaj nuj nqi. Qhov siab tshaj plaws installation yog 3.5 meters.
Nws yog qhov tsim nyog rau lub tsev ua haujlwm, khw muag khoom, tshav dav hlau thiab lwm yam khoom siv hluav taws xob.
Tuam txhab thiab Hoobkas
Peb yog cov khoom siv hluav taws xob thoob ntiaj teb kev txhim kho thiab kev tsim khoom lag luam, cov khoom tseem ceeb suav nrog cov khoom siv hluav taws xob tsis siv neeg lub qhov rooj, cov khoom siv tswj kev nkag mus rau hauv lub qhov rooj thiab cov khoom siv tshuaj tua kab mob pib. Peb cov khoom muaj xws li: microwave sensors, infrared sensors, nkag mus tswj daim npav nyeem ntawv, qhov rooj sensors muaj nuj nqi hloov, infrared kev sib tsoo sensors, tsis-kov keyboards, wired tes siab hloov, wireless tes siab hloov, ib beam kev ruaj ntseg teeb, dual-beam kev ruaj ntseg teeb, peb-nqaj kev nyab xeeb lub teeb, tsis siv neeg lub qhov rooj thaub qab fais fab, nkag mus rau lub zog tshwj xeeb, tawm khawm hloov, lub hwj chim xauv, electromagnetic locks, ntiv tes thiab lwm yam khoom siv.
Ua ntej ua zaub mov xa tuaj, tag nrho cov khoom yuav raug kuaj kom ntseeg tau tias cov khoom siv tau zoo thiab kev ruaj ntseg zoo. Feem ntau cov khoom tau ntim rau hauv lub thawv sab hauv, thiab tom qab ntawd mus rau hauv lub thawv sab nrauv, thiab sau npe, yooj yim los txheeb xyuas, kuj tuaj yeem ua lub logo raws li koj xav tau.
Yog tias koj xav paub ntau ntxiv txog qhov EN16005 Microwave Motion& Infrared Presence Sensor rau tsis siv neeg zawv zawg qhov rooj, thov hu rau peb, ua tsaug.
