Qhov Rooj System Sensor Rau Qhib

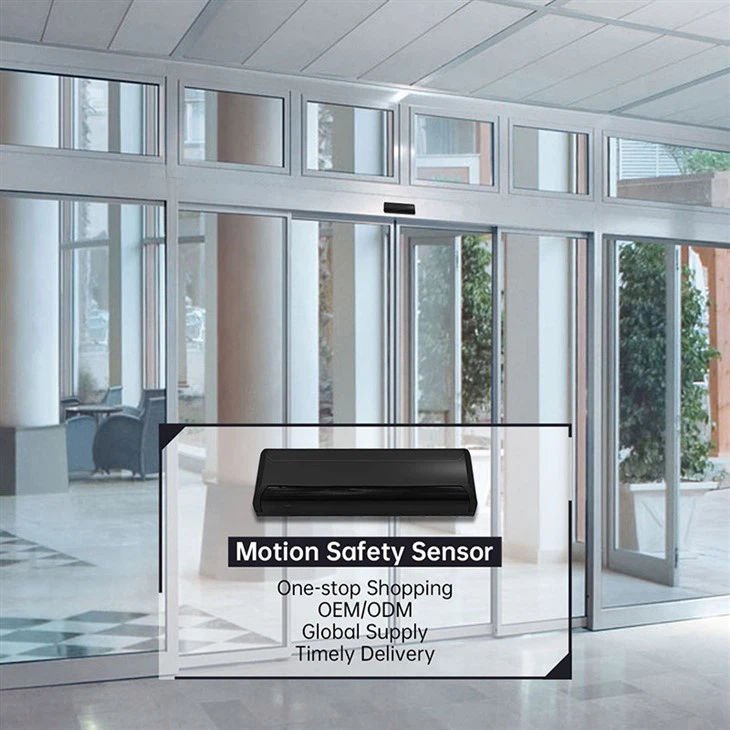

CANBO M -235Qhov Rooj System Sensor Rau Qhib



Sensor -- yog ib qho khoom siv tseem ceeb tshaj plaws rau lub qhov rooj tsis siv neeg thiab qhov rais nkag mus tswj qhov system.



Tsis siv neeg lub qhov rooj yog tsim los ntawm cov khoom siv kho tshuab, hluav taws xob, thiab cov khoom siv hluav taws xob ua haujlwm ua ke kom huv si thiab yooj yim rau kev nkag. Tsis siv neeg lub qhov rooj muaj xws li lub qhov rooj tus neeg teb xov tooj, sensors, thiab tswj qhov system. Tus neeg teb xov tooj lub qhov rooj yog tus saib xyuas qhib thiab kaw lub qhov rooj, thaum cov sensors ntes cov neeg thiab cov khoom thiab xa cov teeb liab ntawm lub qhov rooj qhib thiab kaw.



Dual technologies -- 2.4GHz Doppler microwave processor los ntes tib neeg thiab cov khoom nyob rau hauv qhov chaw hnov. Infrared kev nyab xeeb sensors tau muab tso rau hauv lub qhov rooj tsis siv neeg kom ntxiv kev nyab xeeb rau cov neeg taug kev. Thaum ib qho khoom raug kuaj pom los ntawm cov sensors uas tuaj yeem tiv thaiv lub qhov rooj los ntawm kev kaw tag nrho, lub qhov rooj yuav qhib kom txog thaum cov khoom thaiv raug tshem tawm. Nrog rau kev siv thev naus laus zis no, kev sib tsoo tuaj yeem zam tau thiab ua haujlwm tau zoo thiab muaj kev nyab xeeb ntawm cov neeg taug kev tuaj yeem tswj tau.

Rau cov qhov rooj tsis siv neeg, 235/235E ua ke sensor ua ke nrog kev tshawb nrhiav kev txav nrog kev nyab xeeb pom hauv ib chav.

• Yooj yim installation; zoo tshaj plaws rau automated zawv zawg qhov rooj nrog lub qhov rooj ua haujlwm ua ke los tswj lub qhov rooj qhib thiab kaw.
• Relay tso zis tswj ntawm nws tus kheej, ib qho rau kev tshawb nrhiav cov lus tsa suab thiab ib qho rau kev kuaj xyuas kev nyab xeeb.
• Microwave motion rhiab heev thiab infrared kev nyab xeeb sensing cheeb tsam, tuaj yeem hloov kho los ntawm kev kho pob qhov rooj ntawm tus kheej.
• Nruab nrog kev kawm tus kheej kom taug qab ntawm nws tus kheej thiab hloov kho cov xwm txheej ib puag ncig.
• Lub sijhawm kawm tus kheej tuaj yeem hloov kho; nws tuaj yeem teem rau 15 vib nas this lossis 30 feeb.
• Lub sijhawm hloov tshiab keeb kwm yav dhau thiab NO / NC teeb liab tuaj yeem hloov kho siv DIP hloov.

Lub zog hluav taws xob: AC / DC 12 ~ 30V (± 10%)
Max Installation Qhov siab: 2500mm
Kev ua haujlwm tam sim no: 65mA
Ua haujlwm tam sim no: 130mA
Kev Qhia Txog Kev Ua Haujlwm: Standby: xiav LED; Kev kuaj pom: liab LED
Qhov Loj: 260.3 (L) * 53.4 (W) * 44 (H) mm

Kev Nyab Xeeb Infrared
Ray Hom: Infrared modulated lub teeb, Infrared 940nm
Qhov ntau ntawm Ray: 8 rays kis, 8 rays tau txais
Kev kuaj pom ntau: 1600 (W) * 800 (D) mm



Microwave Motion
Zaus: 24.125GHz
Transmission zaus ceev:<5mW/cm2
Kev ntsuas qhov ntev: 4m (W) * 2m (D)



M-235 sensor nruab tau yooj yim thiab ceev xaim.
1, Txheeb xyuas qhov tsim nyog txoj haujlwm, laum mounting thiab hlau qhov los ntawm lub mounting template.
2, Tshem tawm lub hau, mounting sensor thiab ceev cov ntsia hlau.
3, Txuas mus rau lub qhov rooj maub los thiab kuaj lub sensor.
4, Hloov lub hau.

Hauv kev teeb tsa, qee cov lus qhia yuav tsum tau sau tseg.
a) Qhov ntsuas qhov siab tshaj plaws ntawm qhov nruab nrab yog 2.5 meters, yog li tsis txhob mount siab tshaj 2.5 meters.
b) Mount nyob rau hauv 100mm los ntawm kab hauv qab ntawm lub qhov rooj taub hau.
c) Tsis txhob tso tej yam khoom uas yuav txav mus rau hauv qhov kev tshawb pom.



Lub zog ua haujlwm tau kuaj pom los ntawm 24.125GHz microwave module. Qhov dav thiab qhov tob ntawm qhov chaw ntsuas qhov ntsuas microwave tuaj yeem tswj tau los ntawm kev kho pob qhov rooj. Tig clockwise los kho qhov rhiab heev zog; Tig counterclockwise los kho qhov rhiab heev tsis muaj zog. Kev kuaj pom ntau yog li 4m (W) * 2m (D).



Thiab kev nyab xeeb muaj nuj nqi yog kuaj pom los ntawm infrared 940nm modulated lub teeb, 8 rays transmitting, 8 rays txais. Qhov dav thiab qhov tob ntawm infrared kev nyab xeeb ntsuas qhov chaw tuaj yeem tswj tau los ntawm kev kho cov ntsia hlau. Tig clockwise los kho qhov kev tshawb nrhiav ntau yam txav mus rau sab hauv.Tig rov qab los kho qhov kev tshawb nrhiav tau txav mus rau sab nraud.Qhov kev kuaj pom yog li 1.6(W) * 0.8(D)m





1, Kev Tswj Xyuas Zoo
Txij li thaum nws tsim nyob rau hauv 2006, Shenzhen Winfor Canbo Technology Co., Ltd. Lub tuam txhab muaj cov txheej txheem ntau lawm thiab kev sim, kev tswj xyuas zoo, cov chaw tsim khoom ncaj qha, thiab kev lees paub tom qab muag.



2, Tus nqi zoo dua
Peb yog cov chaw tsim khoom uas koom ua ke R & D, tsim khoom, thiab muag khoom. Nws yuav muaj kev ncaj ncees ntau dua thiab ua kom pom lub siab dawb paug ntawm peb txoj kev koom tes mus ntev yog tias peb txais cov nqi sib tw thiab cov khoom siv hauv Hoobkas ntawm tus nqi qis.



3, ib leeg-nres khw
Txog rau tam sim no, peb pab neeg muaj ntau cov khoom lag luam ua tiav nyob ib ncig ntawm lub qhov rooj tsis siv neeg kom txaus siab rau ntau yam kev xav tau ntawm cov neeg siv khoom. Peb kuj tsis tu ncua tsim cov khoom tshiab thiab muab customization. Peb pab neeg muaj ib lub koom haum kev cai thiab lub hom phiaj ruaj khov.





Q1. Koj puas yog cov chaw tsim khoom? Koj lub Hoobkas nyob qhov twg?
A: Yog, peb yog cov chaw tsim khoom ntawm cov khoom siv tsis siv neeg lub qhov rooj, kev sib xyaw tsim, kev tshawb fawb, kev sim, kev tsim khoom, kev muag khoom. Thiab peb lub Hoobkas nyob hauv Longgang koog tsev kawm ntawv, Shenzhen City, Suav. Zoo siab txais tos rau kev ncig xyuas. Los yog ua ntej koj tuaj yeem mus saib peb lub tuam txhab lub vev xaib:www.canbosensor.com



Q2.Koj puas tuaj yeem xa cov catalog thiab cov qauv rau kuv?
A: Yog, tsis muaj teeb meem, peb muaj cov khoom lag luam ua tiav thiab daim ntawv teev nqi, thov hu rau peb thiab peb yuav xa tuaj rau koj sai sai. Los yog muaj kev xav tau thov qhia rau peb paub, peb tuaj yeem pom zoo tus qauv tsim nyog rau koj.



Q3: Rau peb qhov kev siv tshwj xeeb tam sim no, koj puas tuaj yeem pom zoo qee cov khoom sib txuas rau peb?
A: Tseeb, peb pab neeg muag khoom tau coj cov khoom lag luam thiab kev cob qhia, thiab peb cov khoom tuaj yeem siv tau yooj yim. Thov hu rau peb thiab qhia rau peb paub koj qhov chaw thiab xav tau kev pab, ua tsaug.
