Iav Sliding Qhov Rooj Motion thiab Presence Sensor
Kev ua kom muaj zog thiab muaj qhov sib xyaw ua ke sib xyaw ua ke thiab muaj nyob rau hauv ib qho, siv rau txhua yam tsis siv neeg zawv zawg qhov rooj.
- Kev xa khoom sai
- Quality Assurance
- 24/7 Kev Pabcuam Cov Neeg Siv Khoom
Khoom Taw qhia

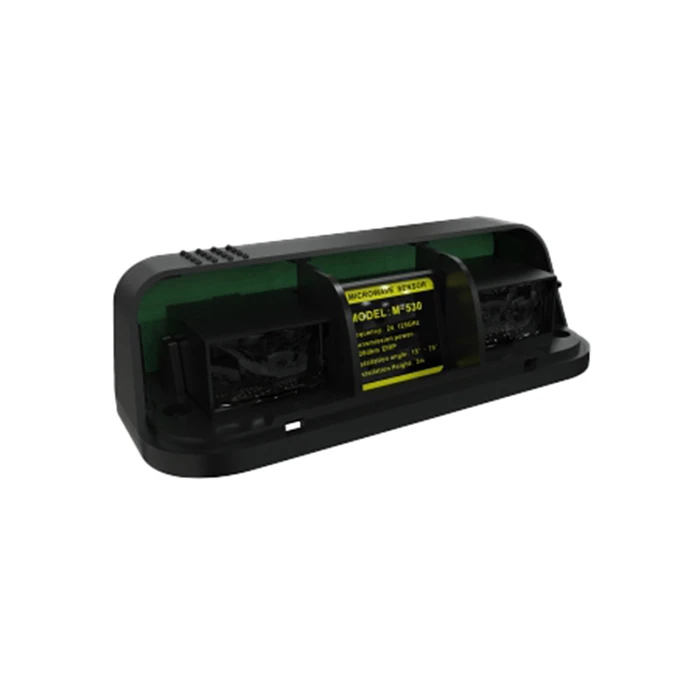

Mini Microwave Ua kom& Infrared Presence Sensor
Kev ua kom muaj zog thiab muaj qhov sib xyaw ua ke sib xyaw ua ke thiab muaj nyob rau hauv ib qho, siv rau txhua yam tsis siv neeg zawv zawg qhov rooj. Kev ua kom muaj nuj nqi yog ua los ntawm microwave thev naus laus zis, thaum lub sijhawm kuaj pom siv lub vijtsam infrared nquag. Tsis tas li ntawd, peb thov"BLUEZONE" rau qhov sib xyaw ua ke sensor, ib qho ntawm cov cuab yeej zoo uas yog qhov tshwj xeeb thiab tab tom teeb tsa tus qauv rau qhov rooj qhib qhov rooj tsis siv neeg nrog" saib dhau" muaj peev xwm.
Khoom feature
* Lub sensor uas ua ke ua ke ntawm kev ua haujlwm ntawm cov lus tsa suab ntes rau kev qhib lub qhov rooj thiab kev ua haujlwm ntawm lub xub ntiag ntes rau kev tiv thaiv kev nyab xeeb ntawm qhov rooj zawv zawg tsis siv neeg. Microwave technology yog siv rau qhov rooj induction, active infrared technology yog siv rau kev nyab xeeb muaj nyob.
* Infrared muaj nyob hauv keeb kwm yav dhau los ntawm kev kawm tus kheej, tuaj yeem kawm keeb kwm yav dhau los thaum lub hwj chim qhib. Haum rau txhua lub sijhawm. Ib txwm kho tus kheej ib zaug yuav cuam tshuam los ntawm av qeeg, distortion, txav, tsaus ntuj thiab tshav ntuj. Xyuas kom lub sensor tuaj yeem ua haujlwm ruaj khov.
* Lub tshuab microwave tau txais lub teb chaws Yelemees imported 24.125GHz microwave sensor module, tsis quav ntsej qhov cuam tshuam los ntawm kub thiab av noo nrog txhim khu kev qha ua haujlwm.
Khoom specification
Technical parameters
Lub zog nkag | AC / DC 12 30V (-/+10%) |
Cable ntev | 2.5m |
Cov zis txuas | TSIS MUAJ |
Mounting qhov siab: | 3000 hli |
Static tam sim no | 53mA ua |
Kev ua tam sim no: | 73mA ua |
Sab nraud dimension | 116 (L) × 49 (W) × 34 (H) mm |
Case khoom | ABS |
Infrared kev nyab xeeb muaj nyob
Ray hom | Infrared modulated lub teeb |
Lub teeb beam | 8 txoj kev kis tau tus mob, 8 txoj kev tau txais |
Lub sijhawm kawm tus kheej | 10 vib nas this |
Kev ua haujlwm zaub | Standby hom: xiav LED; Action detection mode: liab LED |
Kub | -40℃ to+60℃ |
Kev kuaj pom ntau yam | 1500 (W) × 800 (D) mm |
Tso zis tuav lub sij hawm | 500ms ib |
Teb sijhawm | ≤100ms |
Optical nto | PMMA |
Microwave motion induction
Technology | Microwave& Microwave processor |
emission zaus | 24.125 GHz |
Emission zog | ＜ 20dBm EIRP |
emission zaus ceev | 5 mW/cm2 |
Kev kuaj xyuas hom | Tsab ntawv tsa suab |
Kub | -20 ℃ to +55 ℃ |
Tso zis tuav lub sij hawm | 2 vib nas this |
LED qhov taw qhia | standby hom: teeb tawm; Action hom: xiav LED |
Daim ntawv thov
Qhov no mini microwave ua kom& infrared muaj sensor yog compact tsim, me me dua li niaj zaus sensor, xim dub. Txhim kho ntawm lub qhov rooj taub hau ntawm qhov tsis siv neeg zawv zawg qhov rooj, nrog max installation qhov siab 3 meters.
Nws yog qhov tsim nyog rau lub tsev ua haujlwm, khw muag khoom, tshav dav hlau thiab lwm yam khoom siv hluav taws xob.
Tuam txhab thiab Hoobkas
Peb yog cov chaw tsim khoom sib tw los ntawm Tuam Tshoj, feem ntau koom nrog hauv qhov rooj tsis siv neeg Sensor, Touchless Hloov, Ntse Xauv, thiab lwm yam tsis siv neeg lub qhov rooj accessories. Peb lub tuam txhab tau tsim nyob rau hauv 2006, nrog kev tshawb fawb nplua nuj& tsim thiab tsim khoom, thiab peb lub Hoobkas nrog ISO9001 daim ntawv pov thawj, thiab feem ntau ntawm peb cov khoom tau dhau CE, FCC, ROHS thiab daim ntawv pov thawj zoo li.
Ua ntej ua zaub mov xa tuaj, tag nrho cov khoom yuav raug kuaj kom ntseeg tau tias cov khoom siv tau zoo thiab kev ruaj ntseg zoo. Feem ntau cov khoom tau ntim rau hauv lub thawv sab hauv, thiab tom qab ntawd mus rau hauv lub thawv sab nrauv, thiab sau npe, yooj yim los txheeb xyuas, kuj tuaj yeem ua lub logo raws li koj xav tau.
Yog tias koj xav paub ntau ntxiv txog Mini Microwave Activation& Infrared Presence Sensor, thov hu rau peb, ua tsaug.
